- All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
- No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, tightening the domed sealing nut. The completed assembly can then be secured in the chassis by the locknut
- Eliminate inventory, as the swivel design can be substitued for a Straight or 90° connector
- No threading of the conduit or tubing required to install, eliminating the possibility of cutting the conduit and creating leak paths. Applications: HVAC equipment; Machine tools; Marine equipment; Motors and controls; Printing equipment; Pumps; Refrigeration equipment; Transformer connections; Outdoor lighting
- Suitable for indoor/outdoor use; for original equipment manufacturers or field installers. 0 Ring and steel locknut included

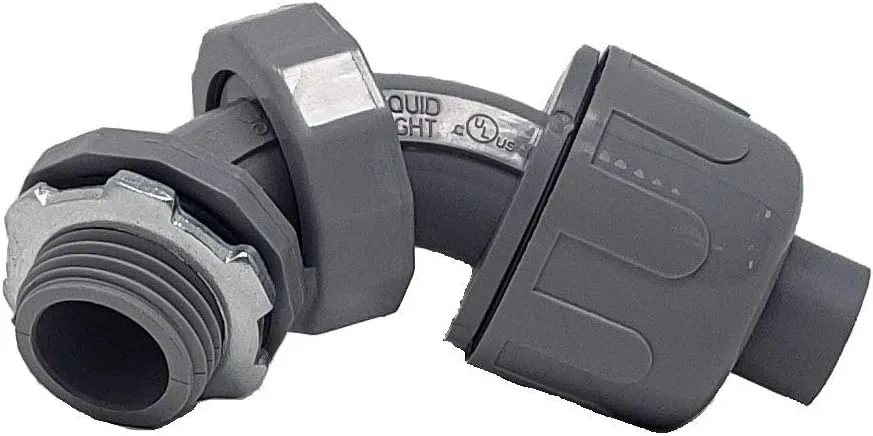

The Sealproof 1/2" Inch Nonmetallic Liquid Tight Multi-Angle Conduit Connector resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvent.
Molded of type nylon 6.
Flammability classification 94V-2
Temperature index 125°C
"0" Ring and steel locknut included
Dimensions: A=2.000"xB=0.540"xC=1.400"
