Features:

* 4 Pole 6 Slot Hi-torque Motor Design

* CNC Machined 6061 T6 Billet Aluminum Heatsink Can

* High Purity Copper Windings Maximizes Efficiency

* High RPM ABEC5 Oversized Bearings

* Universal fit,fits all 1/18th,1/20th brushless cars-multi-mounting system for M2.5 screws

* Precision balanced rotor,smoothness for best reliability and maximum RPM

* Stator - Super Thin (0.35mm) Laminations

* Removable/Replaceable Rotor

* Precision Engineered for Maximum Energy Conversion

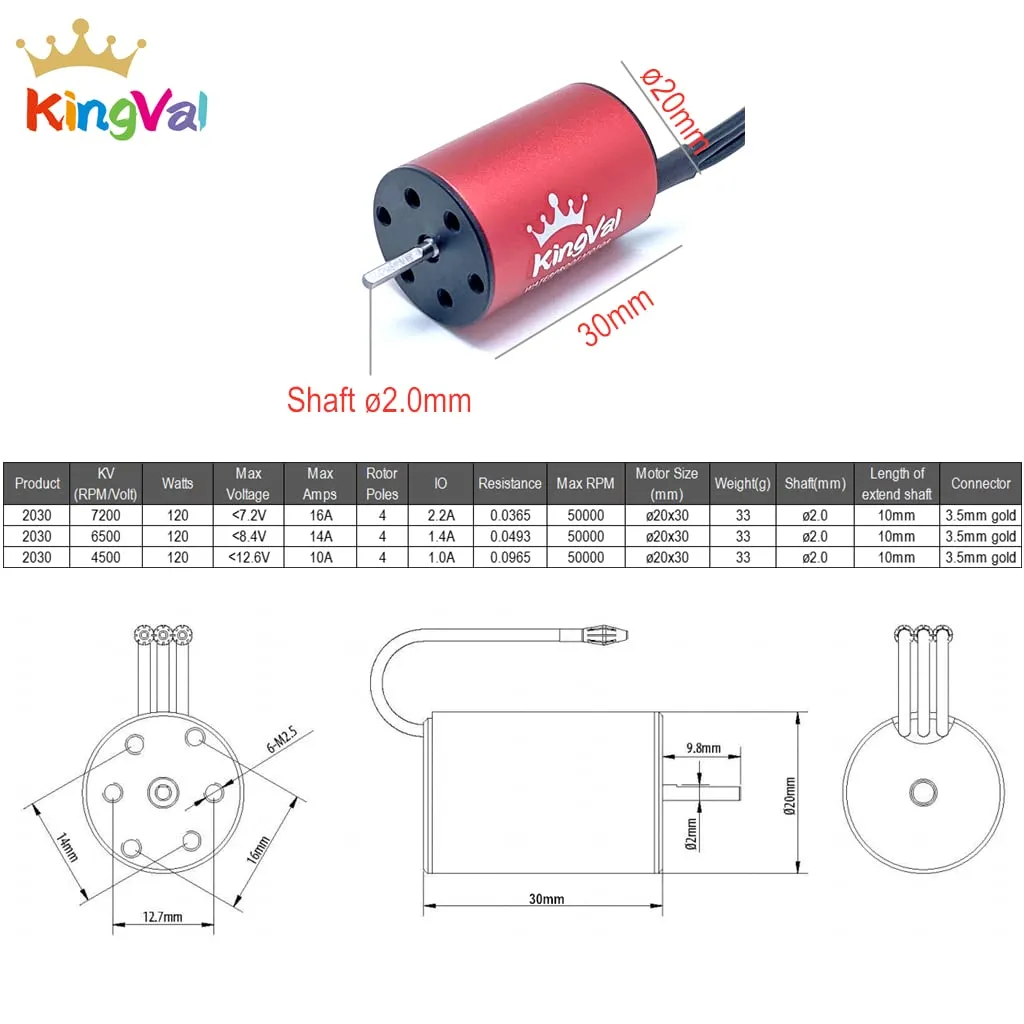

Specifications:

Brand: KingVal

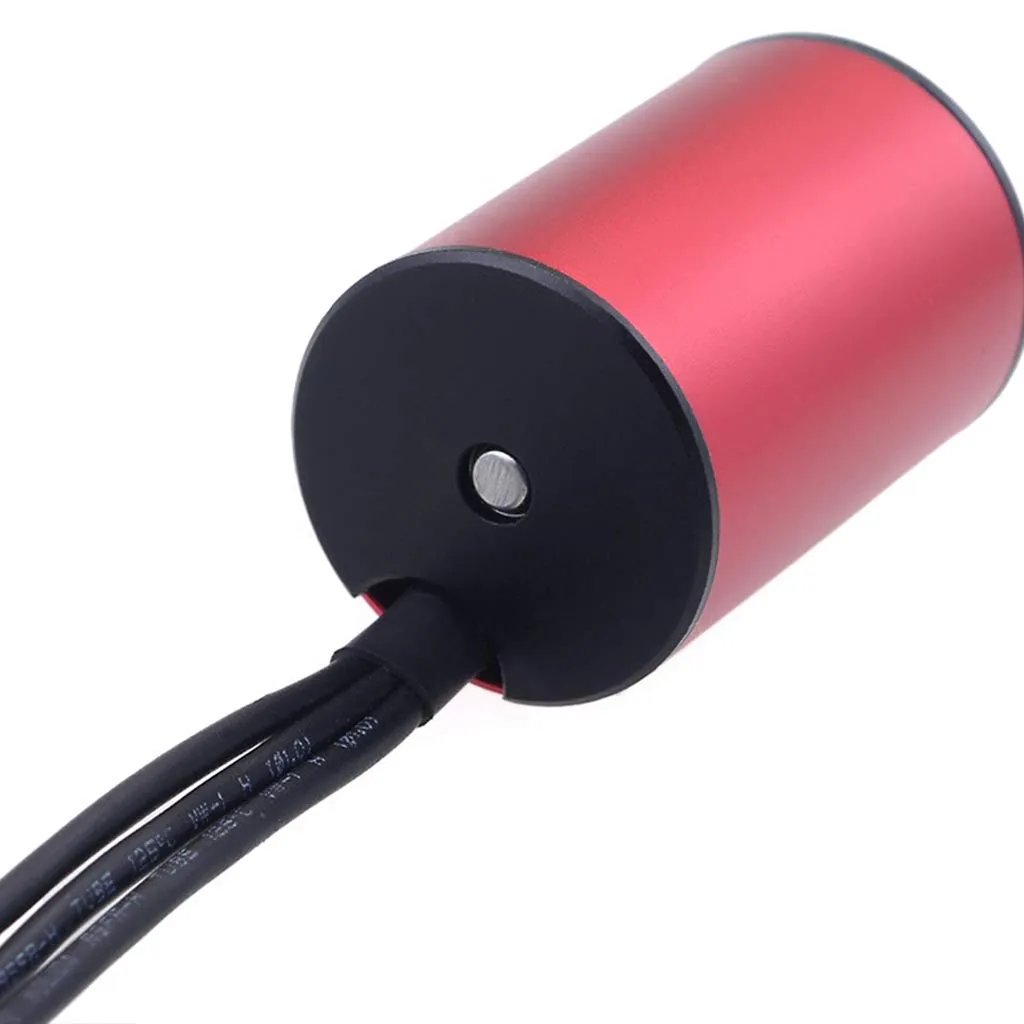

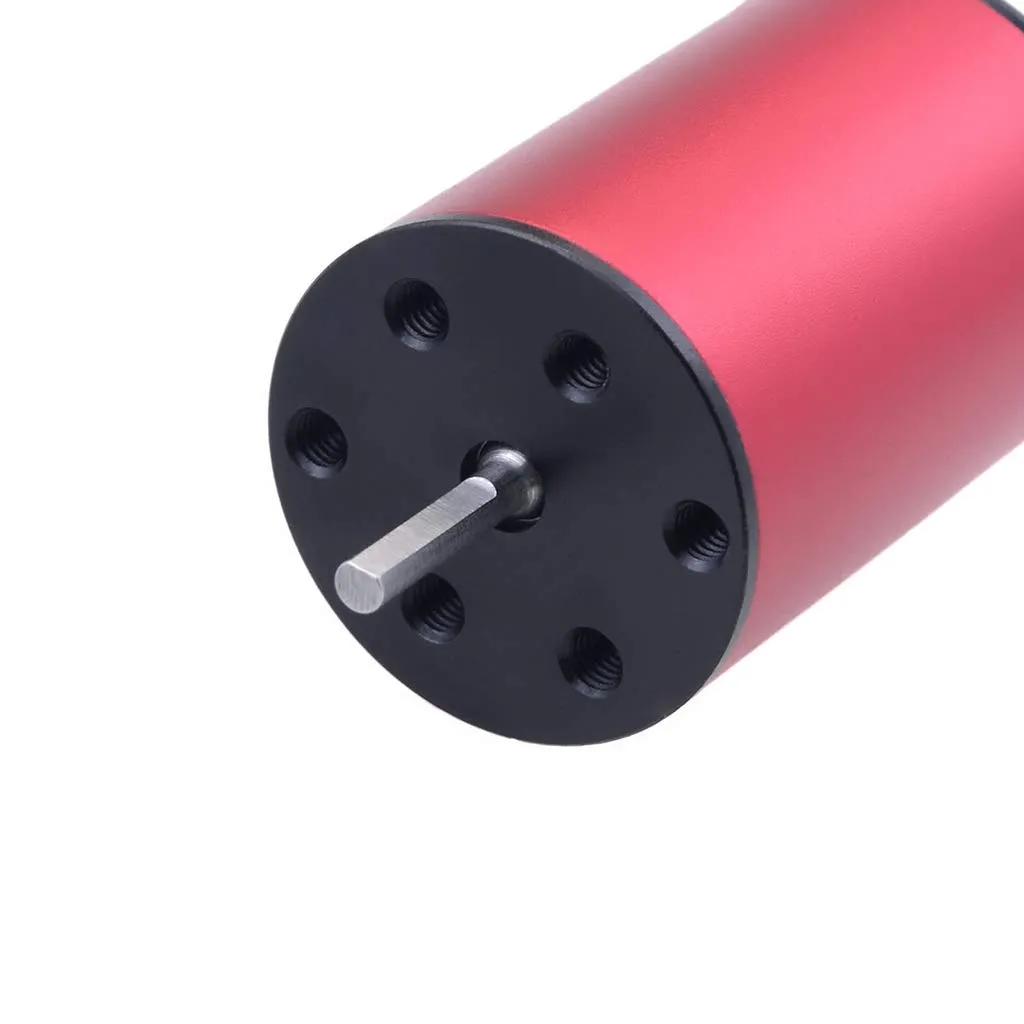

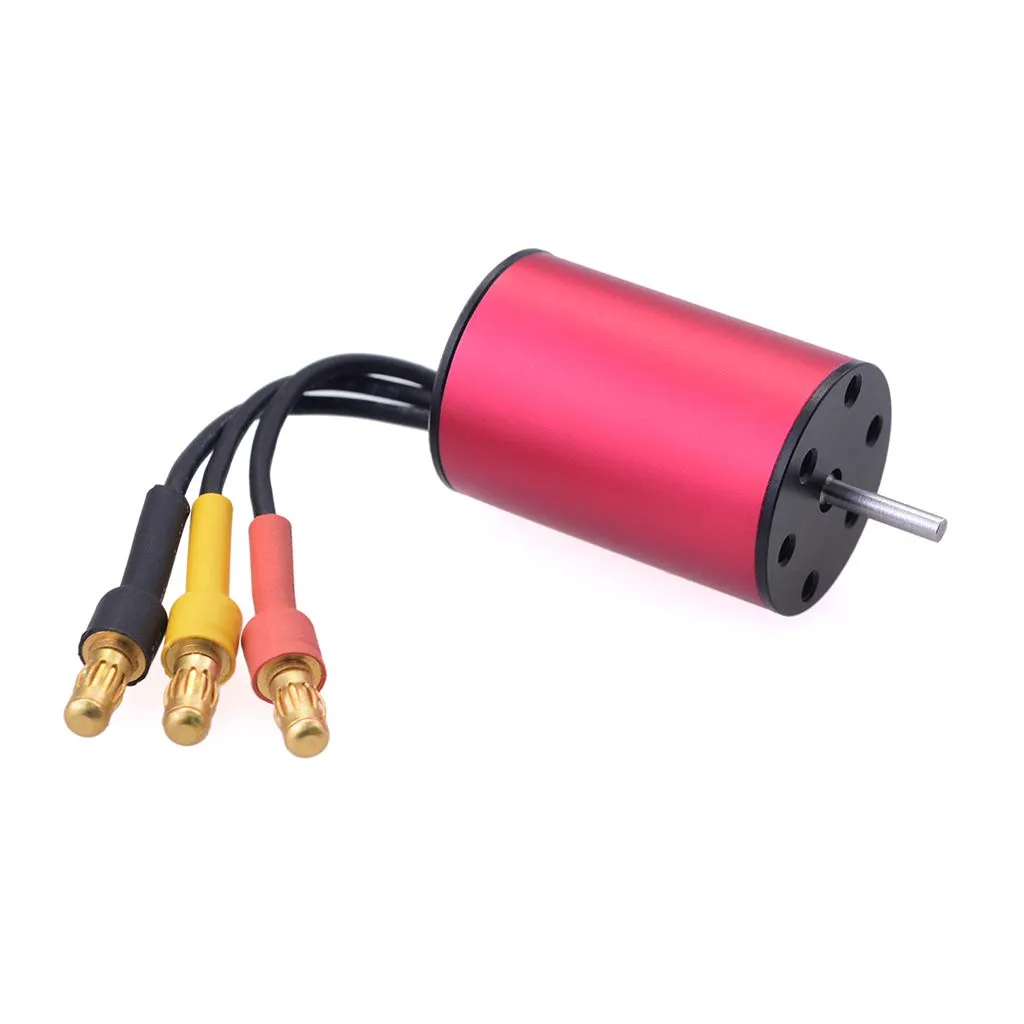

Product: 2030 Waterproof Motor

KV(RPM/Volt): 6500

Watts: 120

Max voltage: <8.4V

Max Amps: 14A

Rotor Poles: 4

IO: 1.4A

Resistance: 0.0493

Rotor Poles: 4

Max RPM: 50000

Shaft: Φ2.0mm

Length of extend shaft: 10mm

Connector: 3.5mm gold

N.W:33g

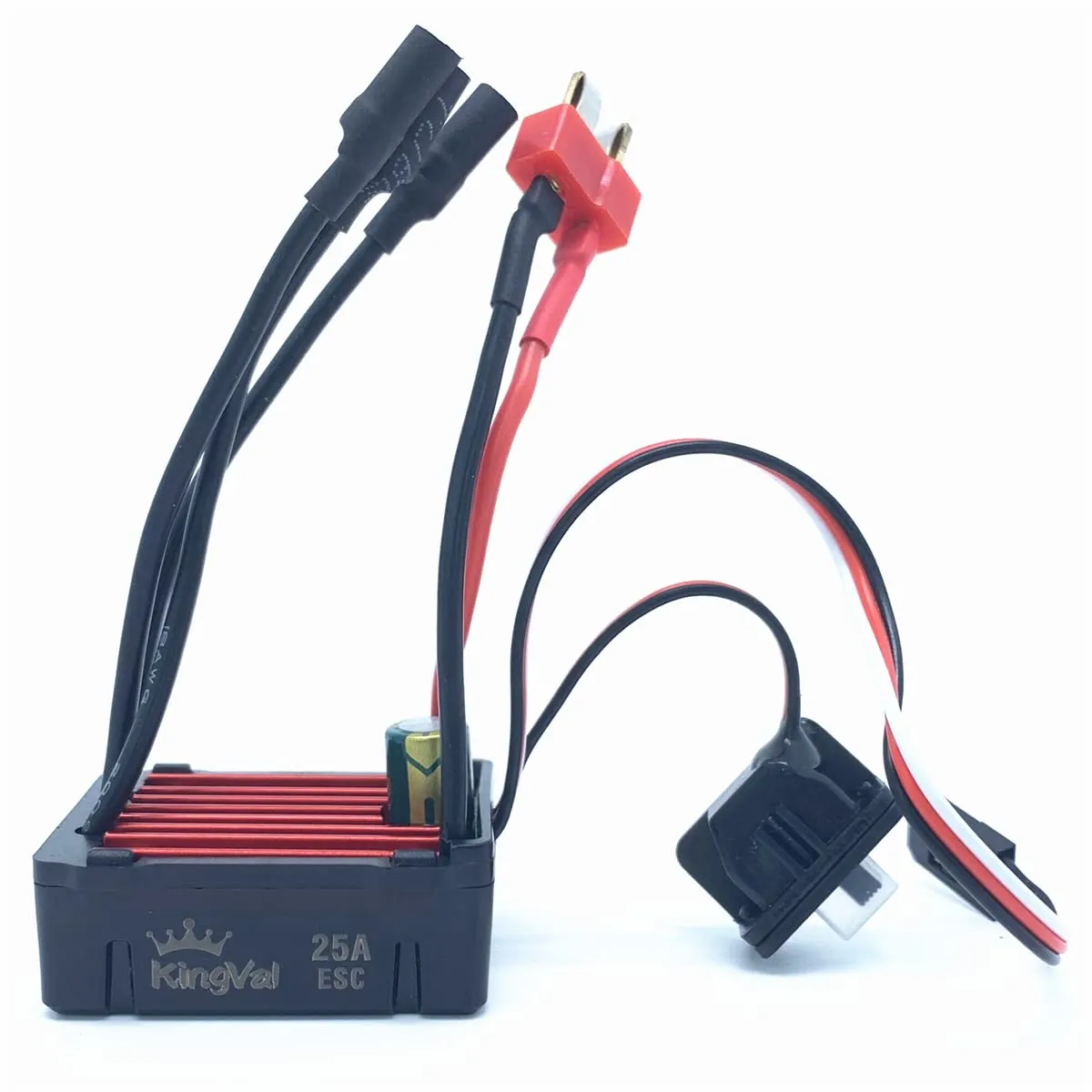

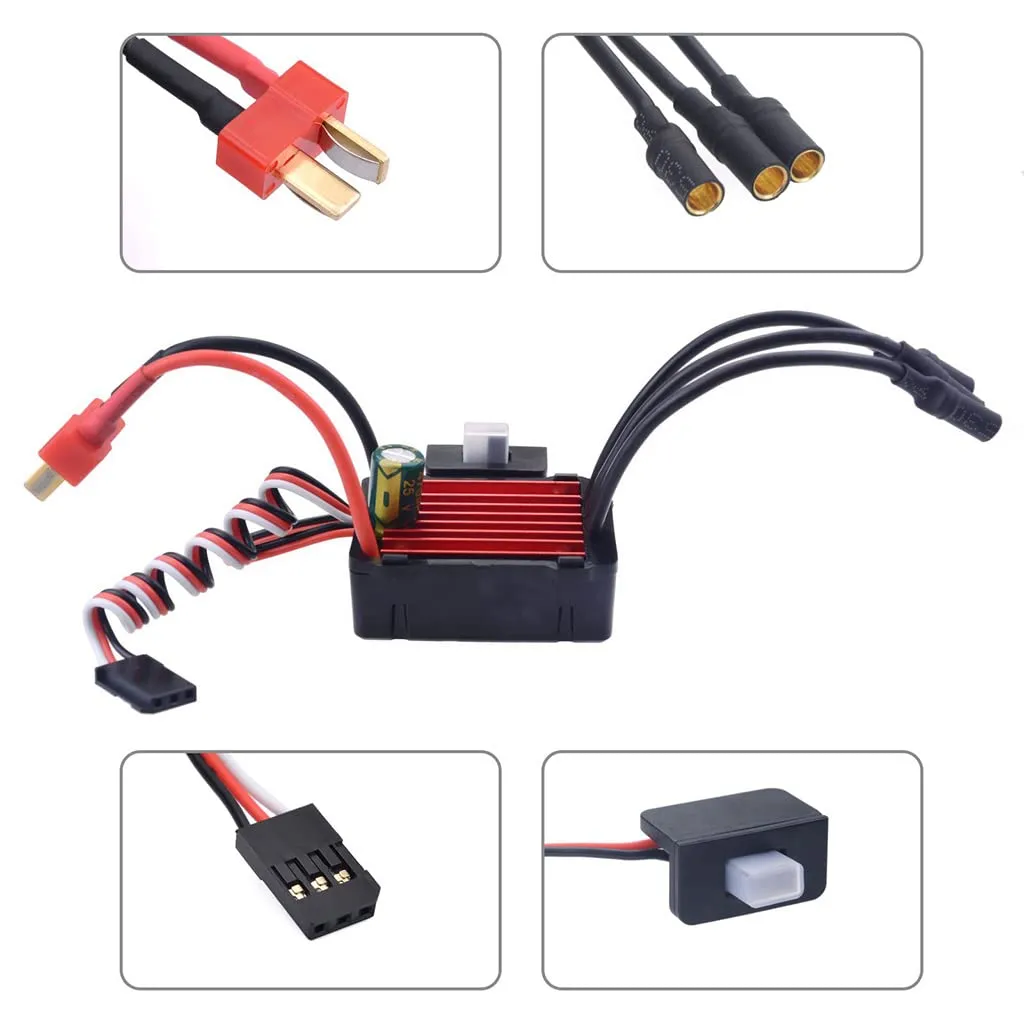

25A ESC:

Model: 25A

Continuous / maximum current: 25A/100A

Adaptation Motor: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road:24XX-size or smaller motor with the KV<7200

2. Off-road / Buggy / Monster: 24XX-size or smaller motor with the KV<4800

Applicable models:1/20, 1/18, 1/16 car

Resistance: 0.0014ohm

Battery: 2 cells Lipo

4~6 cells NiMH

BEC output

5.0V/2A (analog mode)

Size / single weight 40*32*15/33g

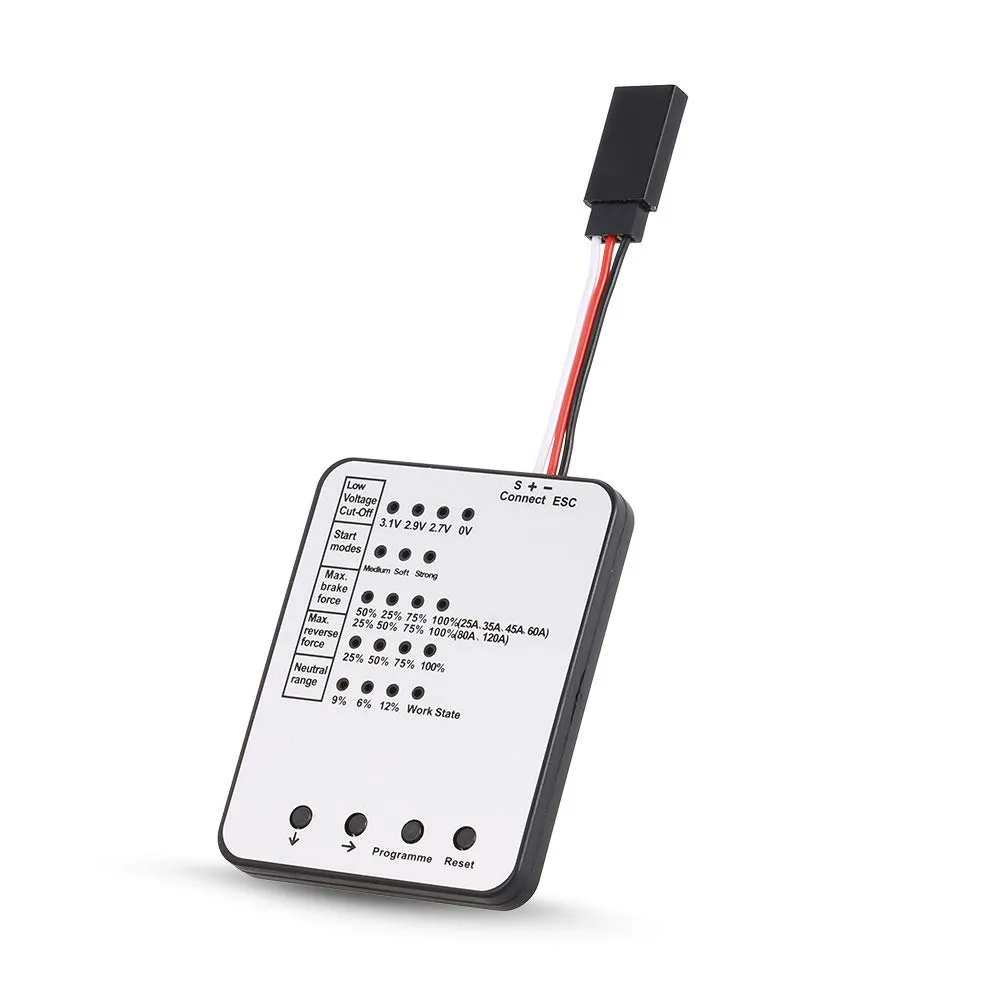

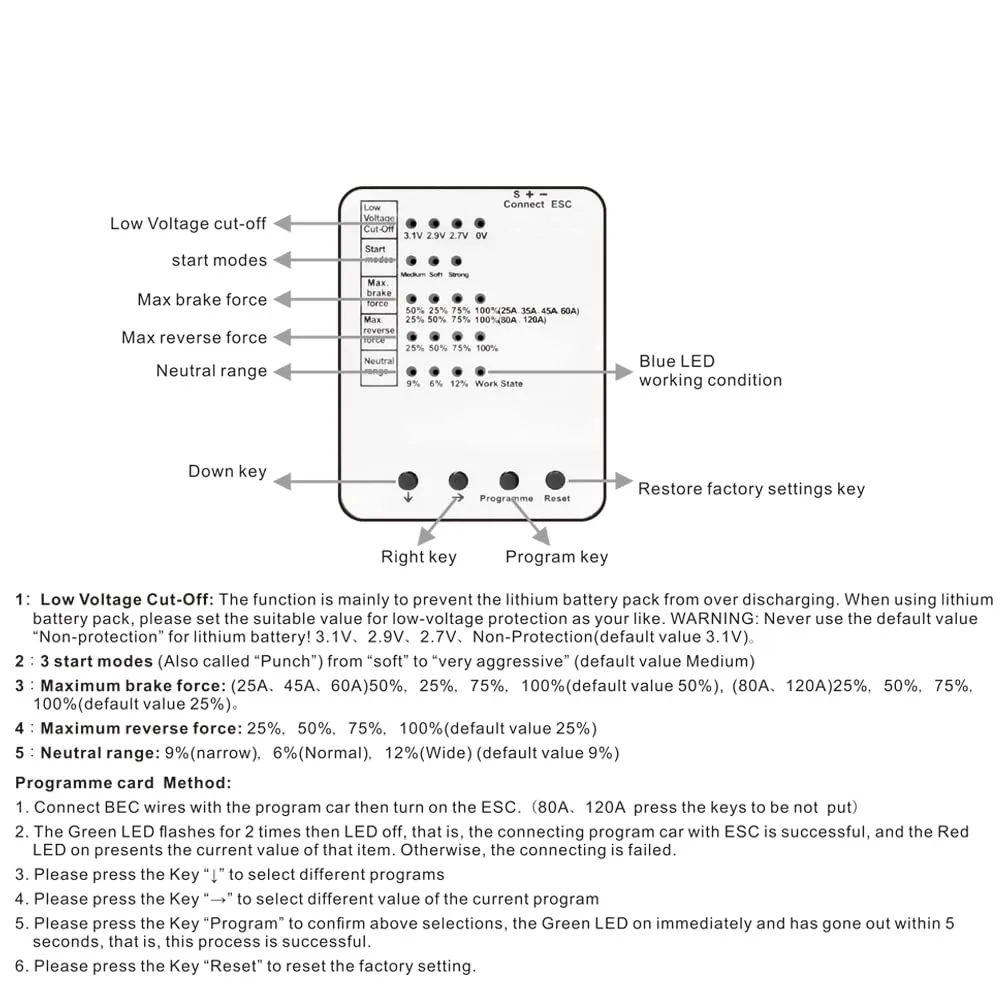

Program card Specifications:

Low voltadge cut off: 3.1V/2.9V/2.7V/0V

Start mode:Medium/soft/strong

Max brake force: 25%,50%,75%,100%

Max reverse force: 25%,50%,75%,100%

Neutral range: 6%,9%,12%,work state

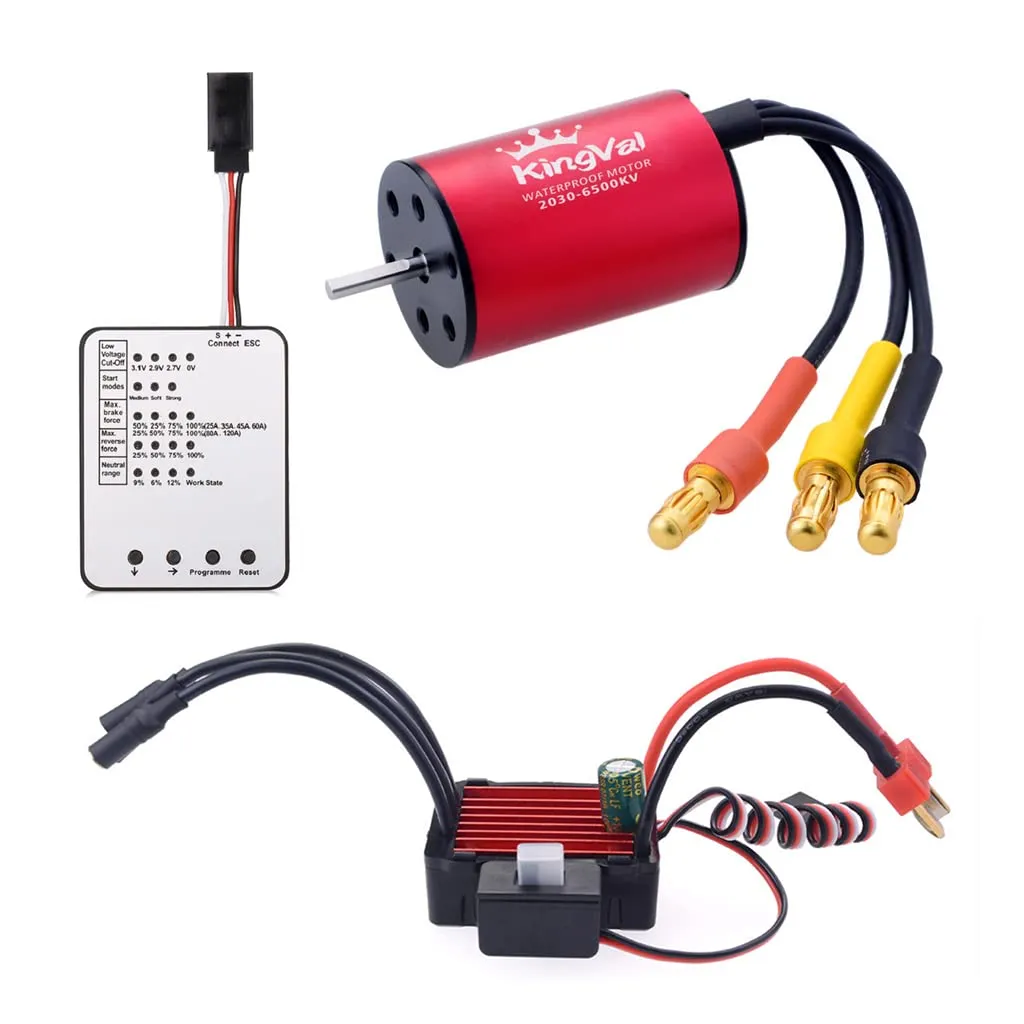

Package List:

1 x 2030 Brushless Motor

1 x 25A Brushless ESC

1 x Program Card

2 x Manual

• Product Dimensions ‏ : ‎ 4.53 x 2.76 x 1.77 inches; 4.94 ounces
• Date First Available ‏ : ‎ March 1, 2023
• Manufacturer ‏ : ‎ KingVal
• Country of Origin ‏ : ‎ China
