- Compact design , Multiple configuration options
- 125 kHz transmit frequency
- Suited for indoor and outdoor use
- Available with either Wiegand or Clock-and-Data output
- Features a beeper and multi-color LED

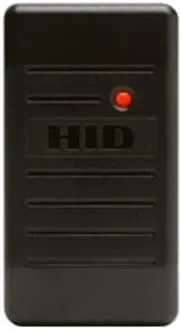

This compact HID ProxPoint Plus Black Mini Mullion Access Control Reader mounts easily, features potted electronics and is designed to be used indoors—or outdoors. The proximity reader has a 125 kHz transmit frequency, and enables various beeper and LED configurations, depending on your site needs. The device is compatible with most access control systems and can be mounted directly on metal without affecting read range performance. The HID ProxPoint Plus mini mullion reader is cost-effective and provides reliable performance.A proximity reader is part of an overall access control solution that would also include a door controller, door hardware and accessories. Access Control Specifications: Read Range :1.0" to 3.0", Reader Type :mini-mullion, Card Size (#bits) :up to 85, Card Compatibility :125 kHz, Connectors: Termination :Pigtail, Physical Specifications: Product Color :Black, Certification :UL294, FCC, EU, CB, SRD, EMC, CE, C-Tick, Mount :Mullion, Outdoor :Yes, Operating Temperature (F) :-22° ~ 150°, Weight :2.7 oz, Dimensions (H" x W" x D") :3.13 x 1.7 x 0.66, Cable Distance :500 ft (150 m) 22 AWG, Power Specifications: Amps DC (mA) :30 ~ 75, Voltage DC :5 ~ 16, Warranty: Warranty (years) :Lifetime, Wireless Specifications: Frequency (kHz) :125
